[edit] Shop firmware on Retail console

<patote> i used the same shop.tcl : http://pastie.org/1979531 :

#!/usr/bin/tclsh
#
# ps3mfw -- PS3 MFW creator
#
# Copyright (C) Anonymous Developers (Code Monkeys)
#
# This software is distributed under the terms of the GNU General Public
# License ("GPL") version 3, as published by the Free Software Foundation.
#

# Priority: 2300
# Description: Patch firmware for installation shop/promo unit

# Option --patch-promo-flags: Patch promo_flags file
# Option --patch-update-flags: Patch update_flags file
# Option --patch-version: Append string to build version

# Type --patch-promo-flags: boolean
# Type --patch-update-flags: boolean
# Type --patch-version: string

namespace eval ::patch_shop {

    array set ::patch_shop::options {
        --patch-promo-flags true
        --patch-update-flags true
        --patch-version "Promotional-to-Retail"
    }

    proc main {} {
        if {$::patch_shop::options(--patch-promo-flags)} {
          debug "Patching [file tail $::CUSTOM_PROMO_FLAGS_TXT]"

        }
        if {$::patch_shop::options(--patch-update-flags)} {
          debug "Patching [file tail $::CUSTOM_UPDATE_FLAGS_TXT]"
          set fd [open $::CUSTOM_UPDATE_FLAGS_TXT w]
          puts -nonewline $fd "0000"
          close $fd
        }
        if {$::patch_shop::options(--patch-version) != ""} {
          append ::options(--build-suffix) "($::patch_shop::options(--patch-version))"
        }
    }
}

patote succesfully installed the resulting 3.55 PUP on a Retail console. The console is in locked mode after installation of the firmware.

 patote	8294 does nothing
 patote	0168 does nothing
 patote	5138 does nothing
 patote	1739 worked fine
 patote	or not ; it didnt said wrong password ; but all is still locked
 patote	2297 nothing
 patote	the code is................. 0000
 patote	and now the install package files and app_home are back in game menu
 patote	ohhh ; and in system too ; all the way down
 patote	if you go to security settings and do l1+r1+select+square it goes back to demo without turn the unit off
 patote	thats system settings install packages option only does blind installations
 patote	you cant browse the thumbdrive ; it just starts installing all the pkgs in the drive
 patote	it works ; but fails in geohot signed ones ; the regular ones installs without problems
 patote	theres another extra option
 patote	automatic update
 patote	"sets wheter to update the system software automatically via internet when the ps3 system is turned on"




[edit] FSELF patch appldr

MFW does not seem to have (proper) support for fself's.

Mathieulh	why do all those emu devs actually use geohot's tool on their selfs, I wonder xD
Mathieulh	the proper format to use is fself
Mathieulh	there are existing patches for fself on 3.41
Mathieulh	but those guys who make those so called cfw didn't port many patches at all
Mathieulh	if not any
Mathieulh	and the memory patcher one for fself isn't there
eussNL	ehm, including MFW Mathieulh ?
Mathieulh	you should just patch appldr
Mathieulh	and make the function that detects the model return true for debug
Mathieulh	and you get native fself + edata
Mathieulh	it's an easy patch
Mathieulh	you can also patch the sign check along with it
Mathieulh	4 bytes to patch
eussNL	I dont see a mention of appldr patch in MFW or I am overlooking it
Mathieulh	yeah MFW doesn't do that
Mathieulh	but there is a lv2 patch for fself too
Mathieulh	(memory patcher)
Mathieulh	at least in 3.41 there is
Mathieulh	it's in psgroove
Mathieulh	but it doesn't work for compressed fself
Mathieulh	it's better to patch appldr
Mathieulh	besides I use compressed fself on all my shit now xD
Mathieulh	saves some room :P
Mathieulh	people should just use fself anyway
Mathieulh	that way you don't need to sign or encrypt
Mathieulh	and it's future proof
Mathieulh	the geohot signed shit doesn't work with 3.56+ cause of the whitelistù
Mathieulh	so you have to patch the whitelist check in the ldr to get them to run
eussNL	some people are having trouble with ps3load/ps3loadx with launching it fselfs on CFWs
eussNL	and with makeself for the same reason I suppose
irssi_	devs won't support it if the CFW doesn't run it
Mathieulh	if the cfw doesn't run fself, it's not complete
Mathieulh	at least not to me
Mathieulh	all my personal cfw all run fself natively
eussNL	hmmm, seems a thing to add to MFW then... appldr patch for fselfs - if it isnt working now


the 4 byte patch he speaks of is:
< 00001360 40 80 0e 0c 20 00 57 83 32 00 04 80 32 80 80 8e |@... .W.2...2...|
---
> 00001360 40 80 0e 0c 20 00 57 83 32 11 73 00 32 80 80 8e |@... .W.2.s.2...|


[edit] Experimental

[edit] Patch Appldr task

patch_appldr.tcl

#!/usr/bin/tclsh
#
# ps3mfw -- PS3 MFW creator
#
# Copyright (C) Anonymous Developers (Code Monkeys)
#
# This software is distributed under the terms of the GNU General Public
# License ("GPL") version 3, as published by the Free Software Foundation.
#

# Priority: 300
# Description: Patch Appldr

# Option --patch-appldr-fself: Patch Appldr to allow Fself (set debug true)

# Type --patch-appldr: boolean

namespace eval ::patch_appldr {

    array set ::patch_appldr::options {
        --patch-appldr-fself true
    }

    proc main { } {
        set self "appldr"

        ::modify_coreos_file $self ::patch_appldr::patch_self
    }

    proc patch_self {self} {
        if {!$::patch_appldr::options(--patch-appldr-fself)} {
            log "WARNING: Enabled task has no enabled option" 1
        } else {
            ::modify_self_file $self ::patch_appldr::patch_elf
        }
    }

    proc patch_elf {elf} {
        if {$::patch_appldr::options(--patch-appldr-fself)} {
            log "Patching Appldr to allow Fself"

            set search  "\x40\x80\x0e\x0c\x20\x00\x57\x83\x32\x00\x04\x80\x32\x80\x80"
            set replace "\x40\x80\x0e\x0c\x20\x00\x57\x83\x32\x11\x73\x00\x32\x80\x80"

            catch_die {::patch_elf $elf $search 7 $replace} \
                "Unable to patch self [file tail $elf]"
        }
    }
}

[edit] Errorlog

Patching Appldr to allow Fself
Executing command ::patch_elf $elf $search 7 $replace
offset: 4967
Rebuilding self file appldr.self
Executing command makeself $in $out $original
Executing shell self_rebuilder {Temp\PS3MFW\PS3MFW-MFW\update_files\CORE_OS_PACKAGE\appldr.elf} {Temp\PS3MFW\PS3MFW-MFW\update_files\CORE_OS_PACKAGE\appldr.self} {Temp\PS3MFW\PS3MFW-MFW\update_files\CORE_OS_PACKAGE\appldr}
FATAL ERROR: Could not rebuild file appldr.self : child process exited abnormally
See Temp/PS3MFW/ps3mfw.log for more info
Last lines of log :
*****************
  auth id:        1ff000000c000001
  vendor id:      00000000ff000000
  app version:    3.55.0
  version suffix: 355
  SDK type:       Retail (Type 0)
  app type:       secure loader
  file suffix:    355 (rev 0x0a)
  key file:   ps3keys\/ldr-key-355 (ERROR)
key_get failed
FATAL ERROR: Could not rebuild file appldr.self : child process exited abnormally
Error running script: Could not rebuild file appldr.self : child process exited abnormally

available LDR @ ps3keys: ldr-pub-retail, ldr-priv-retail, ldr-key-retail, ldr-iv-retail, ldr-ctype-retail

Just add those keys to the ps3keys folder to make the task work : ps3keys in RAR sfx (107.37 KB)

[edit] Offsets

3.55 : offset: 4967
3.50 : offset: 3459
3.42 : offset: 3395
3.41 : offset: 3395
3.40 : offset: 3395
3.30 or lower: FATAL ERROR: Unable to patch self appldr.elf : Could not find pattern to patch
3.30 offset: 2299 = "\x40\x80\x0e\x0d\x20\x00\x69\x09\x32\x00\x04\x80\x32\x80\x80" )
3.21 offset: 3064 = "\x40\x80\x0e\x0d\x20\x00\x69\x09\x32\x00\x04\x80\x32\x80\x80" )
3.20 DEBUG offset: 3064 =  "\x40\x80\x0e\x0d\x20\x00\x69\x09\x32\x00\x04\x80\x32\x80\x80" )
3.15 offset: 3071 =  "\x40\x80\x0e\x0d\x20\x00\x69\x09\x32\x00\x04\x80\x32\x80\x80" )
3.10 offset: 3071 =  "\x40\x80\x0e\x0d\x20\x00\x69\x09\x32\x00\x04\x80\x32\x80\x80" )

[edit] Conclusion / Status

Although it is possible to add as a task, it is not recommended in general. There is brick risk (on 3.55 reported blackscreen brick -> seems to be related to self_rebuilder bug).

  <mall0ry> eussNL, that appldr fself patch is risky because it is patching a branch target

[edit] JFW MA-1 3.56 "bad idea"

http://www.multiupload.com/WO4UYJIJ6T

  SHA1: 9FDC74F0BB4244EF37DEFD20E7CF9E5B08BD4DD3  MD5: EFE066E4836393C8BF60A5CC6804DDC3  CRC32: 735B21DC  CRC16: 4766  HMAC_SHA1: 1D4382A5EB811859192DF75BB3284E284EF70601

Patches (compared to OFW 3.56) : http://pastie.org/private/z0evad6frsdlbntk2suqa
shortlist changed files:

  • lv1ldr
  • lv1.self
  • lv2ldr
  • lv2_kernel.self
  • appldr
  • nas_plugin.sprx
  • vsh.self
  • explore_category_game.sprx
  • explore_plugin.sprx

Request for anyone that installed this FW : lv1 and lv2 dump (can be done e.g. with glevand' PKGs).

[edit] JFW-DH added custom keys

lv1-iv:    148E7A251EC03A2FA88EFCC13D882D4B
lv1-key:   962E952E25236322FE415F6EAC9DEC6BB2AD93CA1FE6B4B82C9A21510BE4B76D
lv1-pub:   625D1DF4C3264BBA9FC17A4437BA42591585A5ECCC6F3042DB3A80CBBC0426DAF33549C537AA7782
lv2-iv:    7E90800265795153BAB81C5E74623639
lv2-key:   0829876E2B9BAB777F5710DABB9AFC86510FA598AC98056DCD4F7A17E68CC479
lv2-pub:   625D1DF4C3264BBA9FC17A4437BA42591585A5ECCC6F3042DB3A80CBBC0426DAF33549C537AA7782
app-iv:    20CF5F16EC9ABBD5ECEE9A957B4CD543
app-key:   6DEC0F32E7403B6302122678A8DB1B41EEAB9A8449CFBD241C7FEAFEFD609094
app-pub:   71F46AC33FF89DF589A100A7FB64CEAC244C9A0CBBC1FDCE80FB4BF8A0D2E66293309CB8EE8CFA95
app-priv:  0010818ED8A666051C6198662C3D6DDE2CA4901DDC
app-ctype: 0x12

[edit] Preloader Advance : Another bad idea?

http://jaicrab.blogspot.com/2011/12/ps3-preloader-advance.html

Backuprflash.bin

As usual the NAND dumps are missing things because of lv1 masking first section:

[edit] NAND: missing bootldr at offset 0x0 and 0xF000000

Offset(h) 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00000000  00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00  ................
00000010  00 00 00 00 0F AC E0 FF 00 00 00 00 DE AD BE EF  .....¬àÿ....Þ­¾ï
00000020  00 00 00 00 00 00 00 00 00 00 00 00 00 00 76 00  ..............v.
Offset(h) 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
0F000000  8C A5 FA 66 E4 E1 F4 05 ED 79 5B 90 2D 1B FE C6  Œ¥úfäáô.íy[.-.þÆ
0F000010  23 C8 CD 66 8D 6C F4 76 21 E3 D7 FD 9C 2D FA 37  #ÈÍf.lôv!ã×ýœ-ú7
0F000020  21 3C C7 74 D9 57 B1 AA 97 74 4F F6 0E 73 B6 79  !<ÇtÙW±ª—tOö.s¶y

[edit] NAND: missing any bootldr header

00 00 2A 3F
00 00 2A 2A
00 00 30 44
00 00 2A 37
00 00 2E 8C
00 00 2F 1C
00 00 2E F4
00 00 2E E3
00 00 2E AB
00 00 2E B3
00 00 2F 13
00 00 2F 3B
00 00 2F 4B
00 00 2F 53
00 00 2F 5B
00 00 2F FB

[edit] NOR: missing second region at offset 0xF00000

On NOR dumps, the second region is missing:

Offset(h) 00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
00F00000  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ
00F00010  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ
00F00020  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ
  ....
00F1FFF0  FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF FF  ÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿÿ
00F20000  43 45 4C 4C 5F 45 58 54 4E 4F 52 5F 41 52 45 41  CELL_EXTNOR_AREA

[edit] Conclusion

not suitable as debrick dump with hardware flasher.

Option
NAND:
use flasher with option to start writing at offset 0x40000 (where Backuprflash.bin 0x0 begins) and thus skip overwriting first bootldr section.
NOR:
use flasher to stop writing after offset 0xEFFFFF
NAND - Partial extraction
  1. Add 0x40000 of 00 bytes at offset 0x0
  2. After that, use flowrebuilder to extract part of the data inside the dump (missing bootldr!)
asecure_loader\metldr
ros\[versionstring-ROS0 $]\[coreosfiles $]
ros\[versionstring-ROS1 $]\[coreosfiles $]
cCSD
cISD
creserved_0
cvtrm
eEID
trvk_pkg
trvk_prg

[edit] OtherOS patches

[edit] 3.55 LV1 patches

http://pastie.org/private/zvohgrd80htu7s47zqu0yg

[edit] 3.55 LV2 patches

http://pastie.org/private/qrirgh0qjsoo4acbuiag

[edit] 3.15 LV1 patches

http://pastie.org/private/imxnatxezislsxjmsci6gg (including 'in hvdump' offsets)

[edit] dexl0ve

[edit] dexl0ve lv2_kernel

http://pastie.org/private/zbhkmnldresx3cdxfufqkg


[edit] Rebug spoofer

Index.dat and Version.txt from to spoof firmware (.dat is always static key, so no need for resigning)

vsh.self patches: http://pastie.org/3495642 (CEX 3.55 OFW vs Rebug Spoofer 4.00)

[edit] PSN enabled spoofer

vsh.self patches: http://pastie.org/private/94i2skcva5qvkypdtx4g6w (CEX 3.55 OFW vs Rebug Spoofer 4.11)

[edit] PSoN!/PS3ITA rebug based variant

http://www.ps3hax.net/showthread.php?t=39462
vsh.self patches: http://pastie.org/private/lugpsiiaww1upltdlebr5w (CEX 3.55 OFW vs PS3ITA and Rebug Spoofer 4.11)

[edit] PS2 on non BC enabler

game_ext_plugin
 set search  "\x88\x1f\x00\x06\x3b\x80\x00\x01"
 set replace "\x88\x1f\x00\x02\x3b\x80\x00\x01"

sysconf_plugin
 set search  "\x88\x1c\x00\x06\x54\x00\x07\xfe"
 set replace "\x88\x1c\x00\x02\x54\x00\x07\xfe"

premo_game_plugin
 set search  "\x41\x9e\x00\x4c\xe8\x01\x00\xa0\x38\x60\x00\x00"
 set replace "\x41\x9e\x00\x4c\xe8\x01\x00\xa0\x38\x60\x00\x01"

premo_plugin
 set search  "\x41\x9e\x00\x4c\xe8\x01\x00\xa0\x38\x60\x00\x00"
 set replace "\x41\x9e\x00\x4c\xe8\x01\x00\xa0\x38\x60\x00\x01"

http://pastie.org/4392598

[edit] appldr 3.55 add 3.56/3.60 keys

As used in mfw\tasks\add_360keys_to_appldr355.tcl and Rogero V3.5

appldr.elf 3.55 patches : http://pastie.org/4458799


[edit] Install Packages on 4.3x

[edit] explore_category_game.prx

set search  "\xF8\x21\xFE\xD1\x7C\x08\x02\xA6\xFB\x81\x01\x10\x3B\x81\x00\x70"
set replace "\x38\x60\x00\x01\x4E\x80\x00\x20\xFB\x81\x01\x10\x3B\x81\x00\x70"

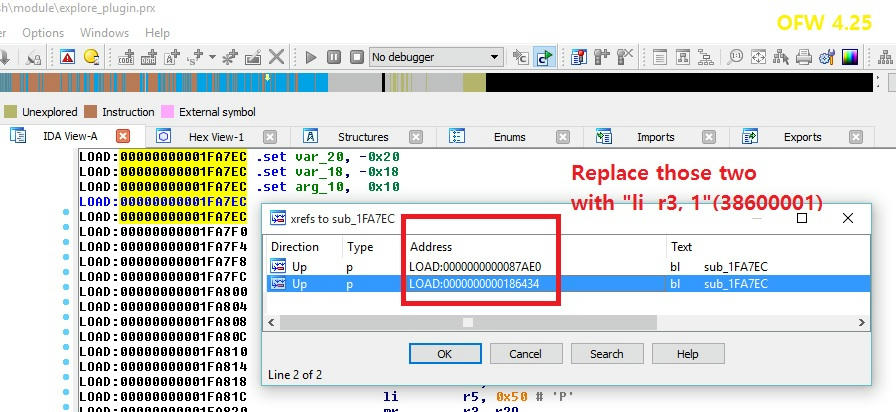

[edit] explore_plugin.sprx

set search  "\xF8\x21\xFE\xD1\x7C\x08\x02\xA6\xFB\x81\x01\x10\x3B\x81\x00\x70"
set replace "\x38\x60\x00\x01\x4E\x80\x00\x20\xFB\x81\x01\x10\x3B\x81\x00\x70"

[edit] category_game.xml

Add to end like always:

   <View id="seg_gamedebug">
      <Attributes>
         <Table key="game_debug">
            <Pair key="icon_rsc"><String>tex_album_icon</String></Pair>
            <Pair key="title_rsc"><String>msg_tool_app_home_ps3_game</String></Pair>
            <Pair key="child"><String>segment</String></Pair>
         </Table>
      </Attributes>
      <Items>
         <Query class="type:x-xcb/game-debug" key="game_debug"  attr="game_debug" />
      </Items>
   </View>

   <View id="seg_package_files">
      <Attributes>
         <Table key="host_device">
            <Pair key="icon_rsc"><String>tex_album_icon</String></Pair>
            <Pair key="title_rsc"><String>msg_tool_install_file</String></Pair>
            <Pair key="child"><String>segment</String></Pair>
            <Pair key="ingame"><String>disable</String></Pair>
         </Table>
      </Attributes>
      <Items>
         <Query
            class="type:x-xmb/xmlpackagefolder"
            key="host_device" attr="host_device"
            src="#seg_packages"
         />
      </Items>
   </View>

   <View id="seg_packages">
      <Items>
         <Query class="type:x-xmb/xmlpackagefolder" key="host_provider_host" src="host://localhost/q?path=/app_home/&suffix=.pkg&subclass=x-host/package" />
         <Query class="type:x-xmb/xmlpackagefolder" key="host_provider_bdvd" src="host://localhost/q?path=/dev_bdvd&suffix=.pkg&subclass=x-host/package" />
         <Query class="type:x-xmb/xmlpackagefolder" key="host_provider_ms" src="host://localhost/q?path=/dev_ms&suffix=.pkg&subclass=x-host/package" />
         <Query class="type:x-xmb/xmlpackagefolder" key="host_provider_usb0" src="host://localhost/q?path=/dev_usb000&suffix=.pkg&subclass=x-host/package" />
         <Query class="type:x-xmb/xmlpackagefolder" key="host_provider_usb1" src="host://localhost/q?path=/dev_usb001&suffix=.pkg&subclass=x-host/package" />
         <Query class="type:x-xmb/xmlpackagefolder" key="host_provider_usb2" src="host://localhost/q?path=/dev_usb002&suffix=.pkg&subclass=x-host/package" />
         <Query class="type:x-xmb/xmlpackagefolder" key="host_provider_usb3" src="host://localhost/q?path=/dev_usb003&suffix=.pkg&subclass=x-host/package" />
         <Query class="type:x-xmb/xmlpackagefolder" key="host_provider_usb4" src="host://localhost/q?path=/dev_usb004&suffix=.pkg&subclass=x-host/package" />
         <Query class="type:x-xmb/xmlpackagefolder" key="host_provider_usb5" src="host://localhost/q?path=/dev_usb005&suffix=.pkg&subclass=x-host/package" />
         <Query class="type:x-xmb/xmlpackagefolder" key="host_provider_usb6" src="host://localhost/q?path=/dev_usb006&suffix=.pkg&subclass=x-host/package" />
         <Query class="type:x-xmb/xmlpackagefolder" key="host_provider_usb7" src="host://localhost/q?path=/dev_usb007&suffix=.pkg&subclass=x-host/package" />
      </Items>
   </View>

Add into place where you want app_home and install package to show up:

         <Query
            class="type:x-xmb/folder-pixmap"
            key="seg_gamedebug"
            src="#seg_gamedebug"
            />
         <Query
            class="type:x-xmb/folder-pixmap"
            key="seg_package_files"
            src="#seg_package_files"
            />
